1. Dual-mode operation ensures uninterrupted operation and maintenance throughout the year.
Snow and ice removal in winter: quickly remove snow and thin ice to prevent components from being damaged by snow and freeze cracking, and restore power generation efficiency.
Daily component cleaning: After switching the cleaning mode, it can remove dust, bird droppings, and fallen leaves. It is compatible with Shunhai’s existing cleaning robots, allowing one set of equipment to be used all year round.
2. Highly reliable design, suitable for extreme outdoor environments
Lightweight body: Made of aviation-grade aluminum alloy + high-strength engineering plastics, with a dead weight of ≤120kg to avoid pressure damage to photovoltaic modules.
Extreme environmental adaptability: -30°C low temperature startup, IP67 waterproof and dustproof, and can operate stably in severe working conditions such as heavy snow, sand, and high humidity.
Redundant design of core components: the roller brush motor and the traveling motor adopt double backup, and automatically switch over in case of failure to ensure continuity of operation and maintenance.
3. Intelligent operation and maintenance, reducing labor costs
Fully automatic operation: supports scheduled tasks and regional division, and can issue operation instructions remotely through the cloud platform without on-site attendance.
Precise positioning and obstacle avoidance: RTK+vision dual positioning, walking deviation ≤5mm, can accurately identify component arrays and avoid collision damage.
Data-based management: Operation trajectory, cleaning area, battery status and other data are uploaded to Shunhai Smart Cloud in real time, supporting power generation gain analysis and assisting in operation and maintenance decision-making.
4. Low-cost operation and maintenance, outstanding long-term economics
Low power consumption design: The power of snow clearing mode is only 1.8kW. Compared with manual snow clearing + cleaning, the annual operation and maintenance cost of a single power station is reduced by more than 60%.
Easy-to-maintain structure: Quick replacement of wearing parts such as roller brushes and filters, maintenance time ≤15 minutes/time, reducing downtime costs.
Compatible with existing tracks: Shunhai’s existing cleaning robot tracks can be directly reused without additional modifications to the power station, reducing initial investment.
5. Safety protection to ensure the safe operation of the power station.
Component protection: soft roller brush + pressure sensor to avoid scratching the component glass and automatically shut down when the pressure is too high.
Electrical safety: The battery adopts overcharge, over-discharge and short-circuit protection, and the whole machine is equipped with leakage protection and emergency stop button to eliminate potential safety hazards.
Anti-fall design: edge detection sensor, automatically decelerates and stops when approaching the edge of the component to avoid damage from falling.
Ground photovoltaic power station: Desert and Gobi power stations covered by large areas of snow.

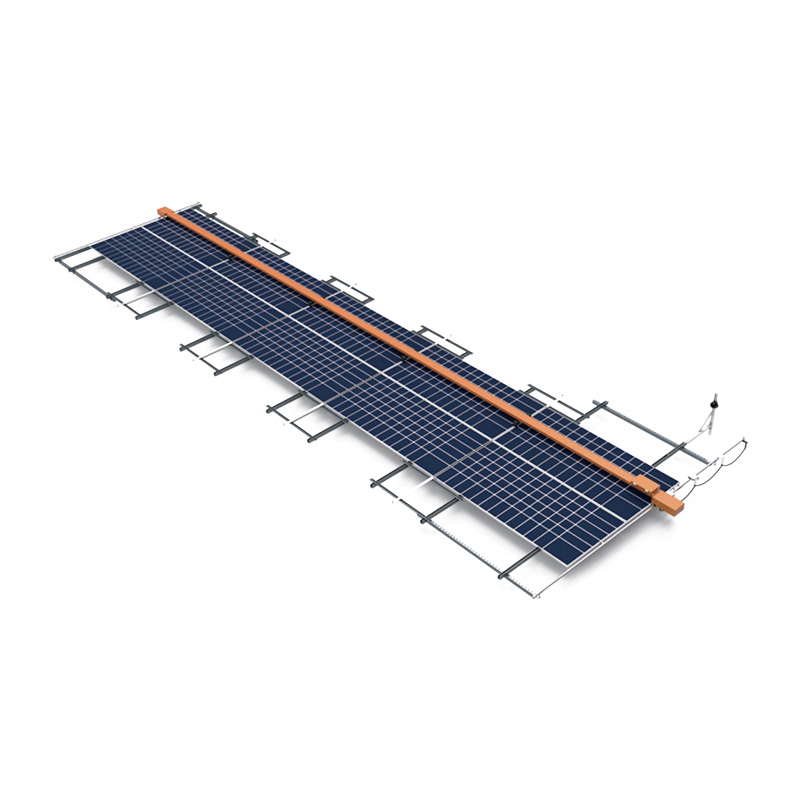

Designed specifically for photovoltaic power stations, rooftop photovoltaic arrays, ground photovoltaic power stations and other scenarios, it integrates the dual functions of intelligent snow clearing + component cleaning to solve the problem of sudden drop in power generation efficiency caused by snow cover in winter. It is also compatible with daily component cleaning operation and maintenance, continuing Shunbo's product genes of 'high reliability, low cost, and intelligence' to help power stations achieve efficient power generation throughout the year.
Basic performance parameters
| Parameter category | Specific indicators |
| Product model | SH-SX-2026 (adapted to Sunhai’s full range of rail-mounted/trackless photovoltaic modules) |
| Working width | 1200mm (600/900mm narrow models can be customized to adapt to small spacing components) |
| self-respect | ≤120kg (lightweight design to avoid pressure loss of photovoltaic modules) |
| Rated power | 1.8kW (snow removal mode)/0.8kW (cleaning mode) |
| Battery specifications | 72V 50Ah lithium iron phosphate battery, IP67 waterproof and dustproof |
| Battery life | Snow clearing mode: ≥6h; Cleaning mode: ≥10h |
| Charging time | Fully charged in 2 hours with fast charging, full in 6 hours with slow charging |
| Operation efficiency | Snow clearing: ≥800㎡/h (snow thickness ≤15cm); cleaning: ≥1200㎡/h |
| Climbing capacity | Maximum climbing angle ≥25° (suitable for mountainous/sloping roof photovoltaic power plants) |
| walking style | Track type/trackless type dual mode (track type is adapted to Shunhai’s existing clean track, trackless type is adapted to trackless power stations) |
Snow clearing and cleaning system parameters
| Parameter category | Specific indicators |
| Snow clearing methods | Spiral roller brush + high pressure hot air snow melting dual mode (low temperature environment gives priority to hot air snow melting) |
| Snow treatment thickness | Maximum processing thickness: 15cm; thin snow (≤3cm) can be directly swept + dried |
| cleaning media | Pure physical cleaning (no chemicals), optional trace water mist dust reduction |
| De-icing function | Equipped with -20℃ low temperature start module, which can remove thin ice on the surface of components |
| Positioning accuracy | RTK+ vision dual positioning, walking deviation ≤±5mm |
| Obstacle avoidance ability | 16-channel ultrasonic + visual recognition, can identify component frames, cables, obstacles, and automatically bypass |
Intelligence and protection parameters
| Parameter category | Specific indicators |
| Communication method | 4G/5G+Bluetooth, supports remote monitoring of Shunhai Smart Cloud Platform |
| Protection rating | The whole machine is IP67 and the core components are IP68, adaptable to extreme environments of -30℃~60℃ |
| Fault alarm | Upload battery power, roller brush wear, walking abnormalities and other data to the cloud platform in real time, and the APP will push alarms |
| data storage | Local storage ≥30 days, cloud storage permanently retains job logs. |
